10Giga Switch







10Giga Switch
Vnet5124T
  • Downlink Port

    - 100M/1G/10G Base-TX x 24Ports

  • Uplink Port

    - 4Port x 1G(SFP)/10G(SFP+)〈オプション〉

  • Console Port

    - RJ45 x 1Port)

  • MGMT Port　

    - RJ45 x１Port

  • Switching Capacity

    - 560Gbps

  • 寸法(mm) : 440(W) x 220(D) x 44(H)
  • 最大消費電力：120W
●10Gigabit Solution構成
Cat6e※1)以上(Cat6a,Cat7など)のLANケーブルを利用する場合10Gまで高速通信サービス提供

ONE Solution(1G/10G)としてサービス提供可能

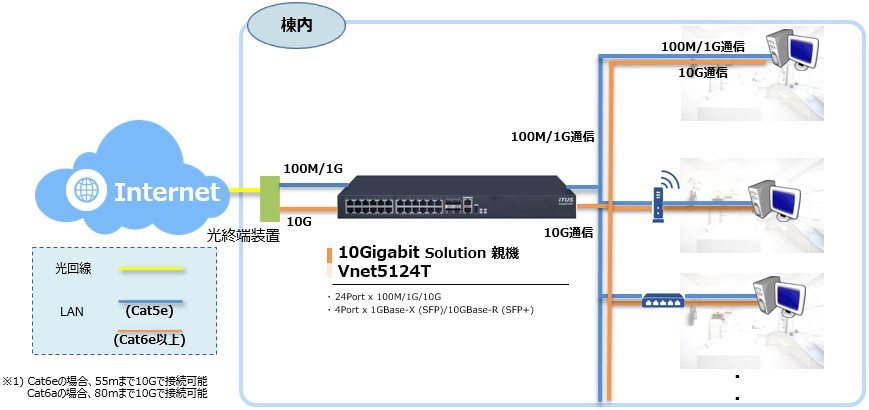

構成図

Vnet5124T(10Gigabit Solution)

Hardware specification　
Physical ports 24Port * 100M/1G/10G BASE-T, 4Port x 1G(SFP)/10G(SFP+)〈オプション〉
Management interface 1 * Console port(RJ-45), １* MGMT Port, 1* USB 2.0 Interface
Power Supply 内蔵型
Fan 内蔵型
Dimension(W×D×H) 440mm×220mm×44mm
Power consumption 120W(max)
Power Input Input voltage (AC): 100V ~ 240V, 50Hz ~ 60Hz
Temperature Operating Temperature: 0℃ to 50℃
Storage Temperature: -40℃ to 70℃
Humidity Operating humidity: 10% to 90%, no-condensing
Storage humidity: 5% to 95%, no-condensing
Switching capacity 560Gbps
Software Features(1)
Ethernet features(1) Port features Port isolation, UNI/NNI isolation
Storm suppression
Port auto-sensing
MAC address Management Learning quantity limitation based on port, VLAN, global MAC address
Static MAC configuration
Black hole address configuration
MAC address auto learning and aging
MAC address migration alarm
VLAN 4K VLANs, VLAN based on port, MAC, IP address, protocol number
VLAN Mapping N:1
PVLAN
Super-VLAN
GVRP
Q-in-Q Basic Q-in-Q and selective Q-in-Q
Port mirroring One-to-one, multi-to-one port mirroring
Data flow mirroring
ERSPAN remote mirroring
ERSPAN enhanced remote mirroring
VLAN mirroring
Software Features(2)
Ethernet features(2) Link aggregation Dynamic link aggregation
Static link aggregation
Cross-board, cross-device link aggregation
Traffic load balance
Multicast function L2 multicast IGMPv1/v2/v3 Snooping, multicast VLAN, support MLD v1/v2 Snooping
ACL/QOS ACL Standard ACL, Extended ACL, Mixed ACL, MAC ACL, Port-based ACL,
ACL based on L3 interface, VLAN-based ACL, Global-based ACL,
Ingress/Egress ACL, ACL matching logs, Bind ALC based on time domain
QOS SP, RR, WRR, WDRR, and other queue scheduling modes
802.1p, DSCP, and other priority mapping
Flow classification
Traffic monitoring
Traffic shaping
Congestion management
Congestion avoidance
Rate limitation based on time domain
Traffic shaping based on time domain
Security function Device security Prevent packet attack, prevent protocol packet attack,
support attack detection function, protocol packet protection,
CPU protection technology
Network security URPF check, packet filtering function, protocol classification flow limiting,
port isolation, DHCP Snooping, Dynamic ARP Inspection, ARP Check, Host Guard
Management security Device management security, network user binding, AAA, SSH2.0,
force to update the password periodically, login password strength setting,
multi-login failure locking function
Software Features(3)
Device maintenance Device Management Console port login, Telnet, SSH V1/V2, CLI for device management
File Management Upload / download files via FTP/TFTP, formatting, files, directory creation,
copy, delete, save file management functions
Network maintenance Ping, Traceroute, LSP Ping/Tracert function, port loop monitoring
Network Management SNMP V1/V2/V3, RMON, WEB network management, SSH V1/V2,
support remote batch upgrade, configuration auto delivery,
IPFIX/SFLOW, support TR069
High reliability Device reliability Support IOS backup and recovery, support configuration file backup and recovery
